In many circumstances, stable temperatures and an optimum indoor environment are crucial to ensure performance levels, comfort and operational reliability. Tailor-made, high-performance refrigeration technology from WOLF offers efficient complete solutions with the perfect combination of low investment and operating costs, space saving integration and reliable operation.
The WOLF Refrigeration Engineering department continuously checks and ensures the high quality of the components at the factory and their adaptability for all custom application requirements. Furthermore, you can rely on an expert and capable partner for planning, building and maintaining your cooling applications.
With variable or multi stage compressor sets (DR / IKS / IK)
As a systems professional, WOLF offers a wide variety of KG Top versions with refrigeration and heat pump technology to meet all requirements:
- Refrigeration units for cooling or dehumidification
- Fully integrated chiller with condenser coil in the extract air or with external condenser
- Internal or external refrigeration pipework depending on customer-specific unit layout
- Appliances with heat pump circuit for cooling/heating
- Dehumidification units utilise waste heat in the supply air (reheating coil)
- Extract air heat pumps for transferring waste heat to water
- Special unit for rooms with thermal loads all year round
- Swimming pool units with and without pool water condensers
Overview of the cool benefits

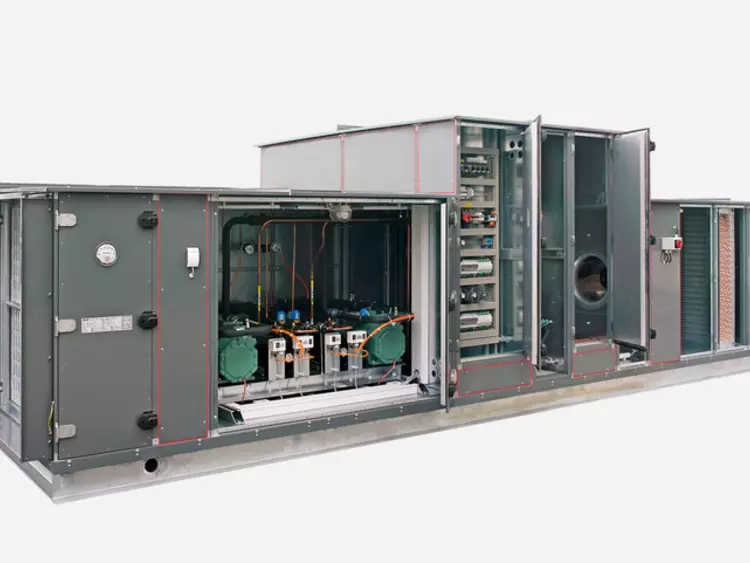

The refrigeration unit is fully installed in an empty, sound-insulated section of the KG Top in the extract air flow of the central ventilation unit. Retrofitting is easy, even to replace appliances made by other manufacturers. The integral refrigeration units from WOLF offer several important benefits that you should consider during the design stage.
- Coordinated refrigeration and control components.
- Clearly defined warranty limits, particularly in conjunction with an overall system control panel from WOLF.
- Systems with variable output control (digital scroll technology and inverters).
- High performance ratings (EER/COP) and efficiency levels.
- No energy losses through water as an intermediary heat carrier.
- Combination with adiabatic extract air cooling.
- Space saving – no additional outdoor unit required for cooling.
- Indoor units – no equipment required on the roof (listed buildings).
- Treatment of the outdoor air that is required for hygienic reasons.
- Compressor in air flow – optimum compressor cooling.
- Compressor set in separate component for easier servicing during operation (optional).
- Refrigeration pipework fitted at the factory or on site.
- Serviced by the manufacturer.
Multi-stage and variable compressor sets
DR compressor set with digital scroll, variable
Refrigeration units in an output range from 10-30 kW.
The compressor/compressor set is installed on anti-vibration mounts. Assembled as one compact unit, it incorporates intake and pressure shut-off valves and a crankcase heater, a refrigerant collector, refrigerant dryer, inspection window, high/low pressure switches and an electronic or thermostatic expansion valve.
If there are multiple compressors in the refrigeration circuit, the appliances are also equipped with an oil regulation system. They are pressure-tested, evacuated and filled with shielding gas in their delivered condition. WOLF refrigeration units are fitted with the necessary safety equipment in accordance with accident prevention regulations/VGB 20 and are assembled and tested in line with the relevant standards and regulations.
It includes a control panel for operating the refrigeration unit, sheet steel casing, a mounted door with rubber seal and rotating latch, RAL 7035 paint finish, contactors, fuses etc. on a mounting panel with wiring ducts, main switches and indicator lights in the door with flexible wiring, fully assembled and partially wired. It is tested in line with VDE 0660 Part 500 and EN 60439-1.
Final installation of the refrigeration pipework, wiring of the refrigeration components to the refrigeration control panel and commissioning of the compressor set on site with pressure testing, commissioning report and user instructions.
- A fully functional unit is assembled from all compressor set components at the factory.
- Precise temperature regulation and efficient operation.
- Output-controlled compressor set controllable down to very low ranges at partial load (down to 10%).
- Complete safety circuit that monitors high and low pressure ranges.
- A load shedding relay can be implemented using the WOLF overall system control panel.
- Straightforward mechanism for robust, uninterrupted operation.
IK compressor set with piston compressors, multi-stage
Refrigeration units with an output range from 30–350 kW. Optional reversible heat pump design possible.
The compressor/compressor set is installed on anti-vibration mounts. Assembled as one compact unit, it incorporates intake and pressure shut-off valves and a crankcase heater, a refrigerant collector, refrigerant dryer, inspection window, high/low pressure switches and an electronic or thermostatic expansion valve.
If there are multiple compressors in the refrigeration circuit, the appliances are also equipped with an oil regulation system. They are pressure-tested, evacuated and filled with shielding gas in their delivered condition. WOLF refrigeration units are fitted with the necessary safety equipment in accordance with accident prevention regulations/VGB 20 and are assembled and tested in line with the relevant standards and regulations.
It includes a control panel for operating the refrigeration unit, sheet steel casing, a mounted door with rubber seal and rotating latch, RAL 7035 paint finish, contactors, fuses etc. on a mounting panel with wiring ducts, main switches and indicator lights in the door with flexible wiring, fully assembled and partially wired. It is tested in line with VDE 0660 Part 500 and EN 60439-1.
Final installation of the refrigeration pipework, wiring of the refrigeration components to the refrigeration control panel and commissioning of the compressor set on site with pressure testing, commissioning report and user instructions.
- A fully functional unit is assembled from all compressor set components at the factory.
- Precise temperature regulation and efficient operation.
- 4, 6, or 8-stage compressor set.
- Load shedding relay already integrated in the refrigeration control panel.
- Communication with the WOLF overall system control unit via bus.
- Self-supporting base frame – if the compressor section has to be taken apart to fit through the door, the compressor set itself can be handled separately as a single component.
IKS compressor set, variable
Refrigeration units with an output range from 30–130 kW. Optional reversible heat pump design possible.
The compressor/compressor set is installed on anti-vibration mounts. Assembled as one compact unit, it incorporates intake and pressure shut-off valves and a crankcase heater, a refrigerant collector, refrigerant dryer, inspection window, high/low pressure switches and an electronic or thermostatic expansion valve.
If there are multiple compressors in the refrigeration circuit, the appliances are also equipped with an oil regulation system. They are pressure-tested, evacuated and filled with shielding gas in their delivered condition. WOLF refrigeration units are fitted with the necessary safety equipment in accordance with accident prevention regulations/VGB 20 and are assembled and tested in line with the relevant standards and regulations.It includes a control panel for operating the refrigeration unit, sheet steel casing, a mounted door with rubber seal and rotating latch, RAL 7035 paint finish, contactors, fuses etc. on a mounting panel with wiring ducts, main switches and indicator lights in the door with flexible wiring, fully assembled and partially wired. It is tested in line with VDE 0660 Part 500 and EN 60439-1.
Final installation of the refrigeration pipework, wiring of the refrigeration components to the refrigeration control panel and commissioning of the compressor set on site with pressure testing, commissioning report and user instructions.
- A fully functional unit is assembled from all compressor set components at the factory.
- Precise temperature regulation and efficient operation.
- Output-controlled compressor set controllable down to very low ranges at partial load (down to 20%).
- Complete safety circuit that monitors high and low pressure ranges.
- Load shedding relay already integrated in the refrigeration control panel.
- Oil monitoring and regulation system.
- Self-supporting base frame – if the compressor section has to be taken apart to fit through the door, the compressor set itself can be handled separately as a single component.

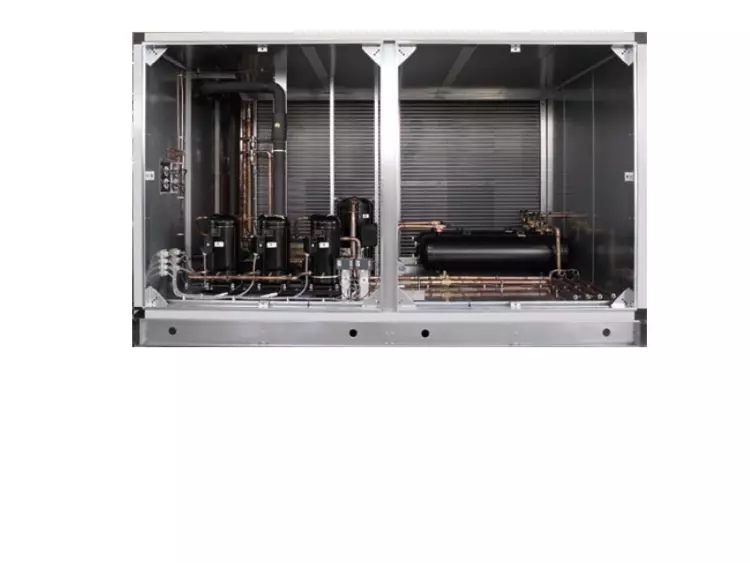

Integrated heat and cold sources
Generating heat and cold using a compression process is the latest thing. It is both practical and makes economical use of primary energy. A great deal of expertise is required to ensure that all runs smoothly. After all, nobody wants to be stuck in chilly or overheated rooms.
In addition to having many years of experience with refrigeration technology, WOLF also has access to the latest cooling technologies that are perfectly coordinated with WOLF air handling unit controllers. For instance, scroll compressors can be adjusted across a large output range – vital when using EC fans that handle CO₂. Both modular and complete solutions are available that can be fine-tuned to the respective application. Plug-and-play solutions that only need to be connected on site or modular systems: WOLF provides the full spectrum of integrated compressor technology solutions of any size.
Overview of benefits
- Decentralised, integrated heating and cooling
- Utilise extract air for maximum efficiency
- Plug&play solutions for installation in a flash
- Wide-ranging expertise in consultation and system design
- Comprehensive WOLF services
- Large selection of cutting-edge components
- Perfect interaction between compressor and controller
- No risk of frozen lines
