Maximum flexibility

Build the perfect appliance piece by piece from our modular system.

WOLF’s modular KG Top ventilation solution combines the advantages of mass production with the flexibility of a custom design.



Request a personal consultation

WOLF’s modular KG Top series combines the advantages of mass production with the flexibility of a tailored design. Choose from 23 different sizes to put together the appliance you want. This unique level of flexibility does not come at the expense of short response and delivery times.
The WOLF KG Top range of high-efficiency units for office buildings, hotels, industrial facilities, retail spaces and hospitals meet a demanding set of requirements. More than 50 years of WOLF expertise has gone into every single module.

Overview of product highlights

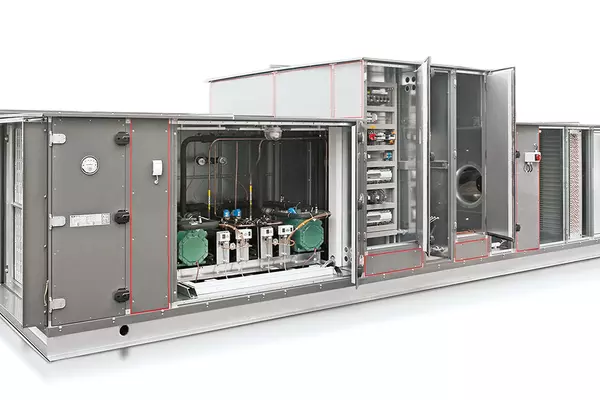

KG Top

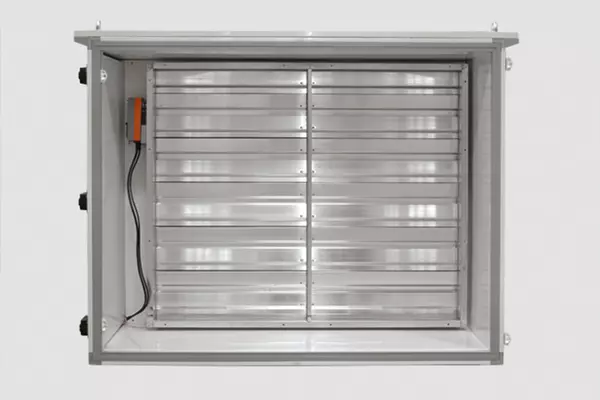

  • Louvre dampers: Airtight, externally mounted or integrated in line with DIN EN 1751 standard, casing tightness category 2 and 4, optional double lip, zinc-plated, powder-coated or stainless steel finish.

  • Immaculate hygiene: Gears located outside the air flow.

  • Filters: The right filter for any task.
    WOLF’s filters were developed in house
    and exceed usual standards, e.g. bag filters are held
    clear of the base for outstanding hygiene.
KG Top

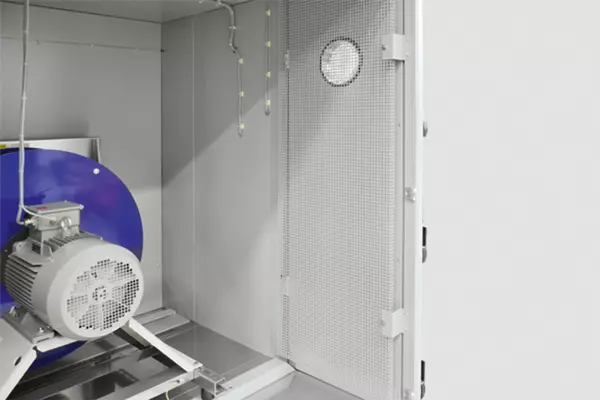

  • Smooth-running, efficient EC motors combined with latest generation of fan impellers.

  • Trays, covers and side walls: the absolutely smooth and gap-free interior guarantees perfect hygiene. Zinc-plated, powder-coated and/or stainless steel versions available.

  • Heating coil in line with VDI 6022 as standard.
KG Top - Grundrahmen Kranbefestigung

  • Appliance frame: optional internal frame
    Height-adjustable legs, 60-mm appliance base frame,
base frame height 200–500 mm (optional).

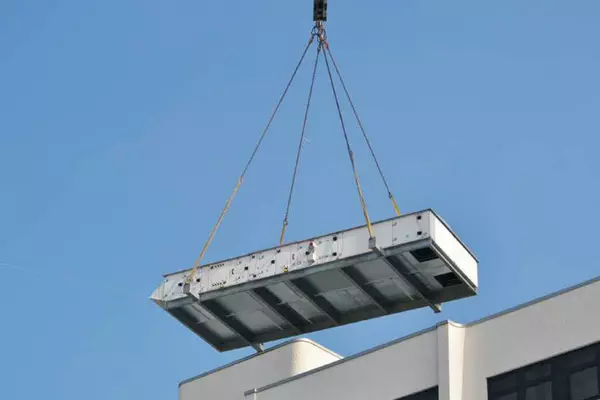

  • Easy Lifting: Lifting eyes for straightforward transportation by crane or helicopter.
WOLF KG top

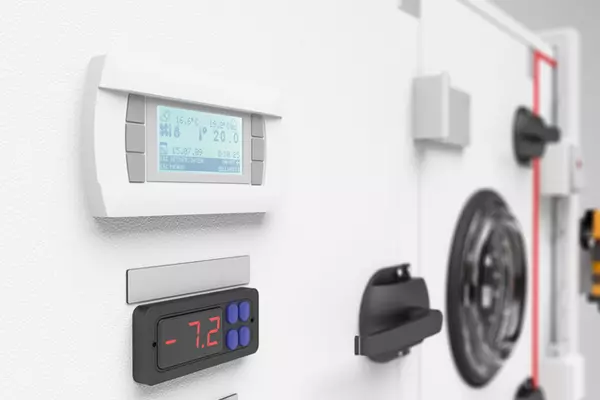

  • Control and monitoring equipment:
    On request, any appliance can be equipped with
    a control unit. We can easily provide special
    programming.

  • Fully wired On request, we can deliver any appliance to your construction site fully and flawlessly wired.

  • Field devices, actuators and sensors:
    Individually coordinated and fitted
    high-quality components.
KG Top - Perspektive von außen

  • Doors: All doors equipped with glass fibre-reinforced handles and rotary closure with automatic safety catch and/or lever/twin-lever closure with optional lock.

  • Coated for indoor or outdoor use: The appliance
    can be powder-coated in any RAL colour or finished with salt-water-resistant C5M paint.

State-of-the-art AHU

The series only uses the latest generations of each fan and heat recovery system, like highly efficient thermal wheel heat exchangers (TWHE) with temperature and humidity transfer levels of over 90% and unprecedented tightness rates of 98% to VDI 3803/5. WOLF also always complies with all relevant standards and regulations. Heat generators and cooling sources can be integrated into the appliance if required. A heat recovery system, integrated heating appliance and a variable speed refrigerating unit and heat pump make the WOLF KG Top an all-in-one energy centre.

KG Top heat recovery

  • Highly efficient thermal wheel heat exchanger

    Flexible heat recovery with a compact footprint

    Thermal wheel heat exchangers function as regenerative heat recovery systems (WRG). They are suitable for use across the entire air flow rate range. With the benefit of their compact design and ability to transfer high heat recovery outputs, they are especially effective in higher air flow rate ranges. The AHU achieves temperature and humidity transfer levels of over 90% and unprecedented casing tightness rates of 98% according to VDI 3803/5.

    Find out more
    wolf

  • High-performance run-around coil system

    Highly efficient heat recovery throughout the entire system.

    Highly efficient heat recovery, even in areas with particularly stringent indoor air quality requirements. Complete separation of the supply and extract air flows means that no pollutants, moisture, odours or bacteria can be transferred from one to the other.

    Find out more
    wolf

Certified in line with the Eurovent standard

WOLF is committed to full compliance with all relevant standards and regulations. Our appliances are also certified in line with the Eurovent standard. Thanks to our international experience, our specialist consultants are happy to take on projects outside Germany.

Eurovent Zertifikat

Your partner for every stage of your project

The following skills are not just our core brand values, they are the promise we make to our partners and customers.

Product range
Compact, modular, custom

We supply fully wired compact appliances up to 20,000 m³/h, modular appliances up to approx. 40,000 m³/h and custom appliances up to 350,000 m³/h.

Overview
Product range
Compact, modular, custom

We supply fully wired compact appliances up to 20,000 m³/h, modular appliances up to approx. 40,000 m³/h and custom appliances up to 350,000 m³/h.

Overview
WOLF know-how
50 years of project experience

Well over 100,000 air handling appliances installed worldwide, forming the basis for developing new technologies.

WOLF know-how
50 years of project experience

Well over 100,000 air handling appliances installed worldwide, forming the basis for developing new technologies.

In your area
Regional collaboration

Comprehensive and responsive sales network for professional and targeted cooperation.

To the overview
In your area
Regional collaboration

Comprehensive and responsive sales network for professional and targeted cooperation.

To the overview
Excellence in service
For every stage of your project

Diverse and expert service team – qualified for any task.

Excellence in service
For every stage of your project

Diverse and expert service team – qualified for any task.

Easy Lifting
system for unparalleled transportation

Easy to handle with a crane or helicopter; saves time and minimises errors during transportation

Find out more
Easy Lifting
system for unparalleled transportation

Easy to handle with a crane or helicopter; saves time and minimises errors during transportation

Find out more
control technology
Directly from the WOLF factory

We provide fully wired units, not only for our compact models but also for all other WOLF appliances.

control technology
Directly from the WOLF factory

We provide fully wired units, not only for our compact models but also for all other WOLF appliances.

Certification
Eurovent for all custom appliances

WOLF strictly and verifiably adheres to all structural, hygiene and energy requirements and legal specifications.

Certification
Eurovent for all custom appliances

WOLF strictly and verifiably adheres to all structural, hygiene and energy requirements and legal specifications.

COVID-19 pandemic
Operation & maintenance of AHU appliances

In light of COVID-19, operators of air handling and ventilation units are facing many questions about the operation and maintenance of their systems. WOLF can help.

Find out more
COVID-19 pandemic
Operation & maintenance of AHU appliances

In light of COVID-19, operators of air handling and ventilation units are facing many questions about the operation and maintenance of their systems. WOLF can help.

Find out more
Product range
Compact, modular, custom

We supply fully wired compact appliances up to 20,000 m³/h, modular appliances up to approx. 40,000 m³/h and custom appliances up to 350,000 m³/h.

Overview
WOLF know-how
50 years of project experience

Well over 100,000 air handling appliances installed worldwide, forming the basis for developing new technologies.

In your area
Regional collaboration

Comprehensive and responsive sales network for professional and targeted cooperation.

To the overview
Excellence in service
For every stage of your project

Diverse and expert service team – qualified for any task.

Easy Lifting
system for unparalleled transportation

Easy to handle with a crane or helicopter; saves time and minimises errors during transportation

Find out more
control technology
Directly from the WOLF factory

We provide fully wired units, not only for our compact models but also for all other WOLF appliances.

Certification
Eurovent for all custom appliances

WOLF strictly and verifiably adheres to all structural, hygiene and energy requirements and legal specifications.

COVID-19 pandemic
Operation & maintenance of AHU appliances

In light of COVID-19, operators of air handling and ventilation units are facing many questions about the operation and maintenance of their systems. WOLF can help.

Find out more

Everything else you need to know:

    • Working for your customers 7 days a week:
      An extensive network of highly trained service technicians and expert back office staff – seven days a week. Our Customer Service department provides fast and reliable support for your business and always makes a good impression on your customers.

      Find out more

    • Building Information Modeling, or BIM for short, is revolutionising the world of planning – WOLF is BIM-ready right now!

      Overview of BIM browser benefits:

      • Plan your appliance configuration quickly and easily using the 2-minute configurator
      • Calculate and design your system from concept to assembly
      • Visualise your system as a 2D or 3D model with all necessary connections
      • All WOLF heating products are available as Revit-compatible files



    • Difficult site conditions for engineers and installers? WOLF offers just the right answer: the Easy Lifting System. It makes transport onto or into a building much easier, and the installation of these functional units becomes quicker and more accurate. It’s so simple that even our largest components, such as thermal wheel or plate heat exchangers, can be easily brought into any building or positioned on the roof.

      The Easy Lifting system also makes a great contribution to the hygiene of WOLF AHU appliances. The intelligent connection and transportation technology virtually eliminates the risk of leakages in heat exchangers or appliance modules caused by installation errors.

      Find out more

    • Our unique synergy of software and products is unrivalled in the industry.
      It makes our appliance configurations highly adaptable, our production methods efficient
      and also keeps our delivery times remarkably short.

    • There is currently no evidence to suggest that COVID-19 can be spread through air handling and ventilation systems. Indeed, experts agree that good ventilation of indoor areas helps to keep the risk of infection down. In addition to systems being technically up to date and planned and installed correctly, they must also be operated properly and serviced regularly for operation to be safe and hygienic. If these points are carefully followed, air handling and ventilation systems pose no increased risk of infection according to the experts.

    • When considering whether COVID-19 can be filtered out using ventilation system filters, the first point to bear in mind is the size of viruses. Viruses are significantly smaller than bacteria, which are relatively large at 1-10 µm and can therefore be separated out efficiently by ePM1 fine dust filters. The coronavirus measures approximately 0.16 µm. Having said that, viruses are generally attached to aerosols or dust particles. Transmission is primarily via droplets. Droplets that people produce are 0.5 to approx. 15µm in size. From other viruses it is known that a 1µm-droplet can contain a sufficient virus concentration to trigger an infection.

      ePM1 filters separate out particles and aerosols, i.e. including droplets, down to a size of 1µm, depending on the separation efficiency. With higher separation efficiency, more of these droplets are separated out and thus remain in the filter medium. When filters are replaced during servicing, personal protective equipment (PPE) should therefore always be worn. This is true irrespective of the current COVID-19 pandemic, as it is generally unknown what substances have been collected in the filter.

    • Recommendations for the operation of air handling and ventilation systems during the COVID-19 pandemic have been issued in a joint communication by the BTGA (Federal Industry Association for Technical Building Installations and Services), FGK (Association for Building and Indoor Air Quality) and AHU-Herstellerverband e.V. (AHU Manufacturers Association). Fundamentally, continued good ventilation of indoor spaces is recommended, including in the current situation. Relative room air humidity should be between 30 per cent and 65 per cent. Very dry air affects the sensitive mucous membranes in the upper airway and makes them more susceptible to viruses.
